Our Products

Media and Process Technology Inc. Process

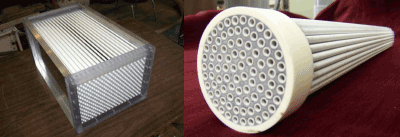

MPT Hollow Fiber Ceramic Membranes



Fiber ID
[mm]
Length
[inch]
Module Diameter
[inch]
Surface Area
[m2]
Material

1 30 1.5 0.4 α-Al2O3

1 30 4.0 3.1 α-Al2O3

3.5 30 1.5 0.2 α-Al2O3

3.5 30 4.0 2.0 α-Al2O3

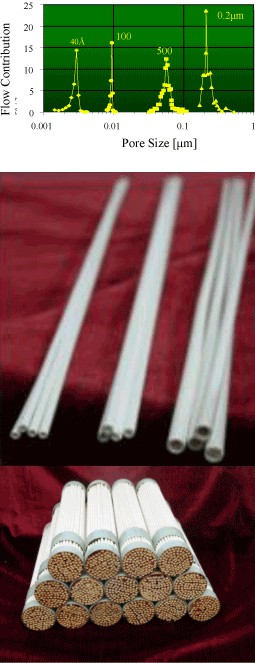

  1. Pore size available in 0.2Ám, 0.1Ám, 500┼, 100┼ and 40┼.
  2. 100┼ and 40┼ are available in γ-Al2O3



Our standard modules are 4" diameter and 30"L in stainless steel housing. Other geometry and configuration are available upon request.
